SWBoM - BillOfMaterials App

• Watch the following screencasts of the program

• CSV to Procurement
• CSV compared to CSV
• Analyse two CSV files
• Send a csv file and get a procurement

This program is for people who use SolidWorks.

An assembly (project) is just a container for all its csv files
Apple's CoreData (bindata option) is used to save the data

A bill of materials (BoM) is a list of the parts or components that are required to build a product. At its most complex, a BoM is a multi-level document that provides build data for multiple sub-assemblies, which are essentially products within products.

• The csv files can be processed into a procurement.
• CSV files can be compared in different ways
• The columns of the csv file must be in the following order: Item No.,Part No.,Description,Quantity and optionally unit

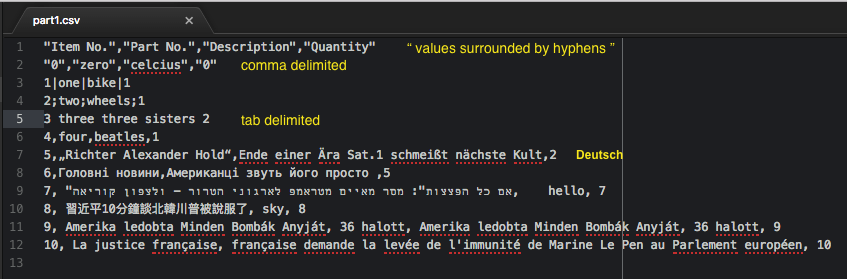

This junk file can be read because its is in the right format.

• different types of delimiters
• different languages

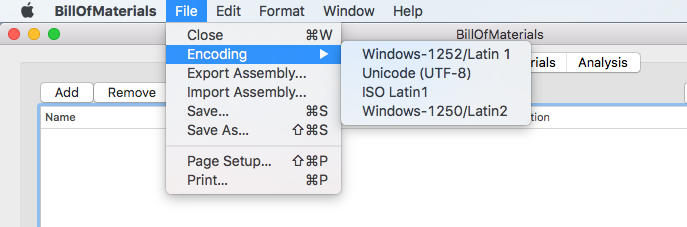

Encodings

• different types of encoding

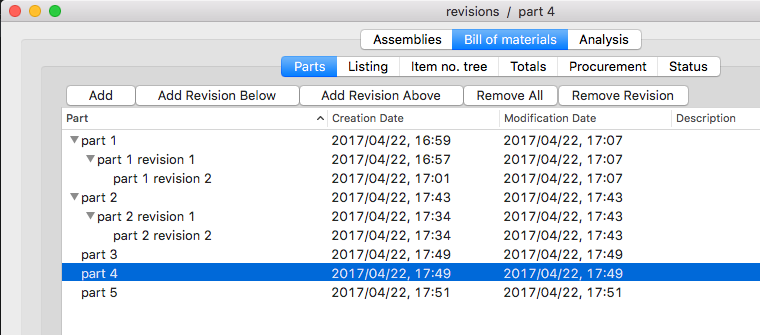

Revisions

• A directory of revisions
• Select analysis to check out any differences

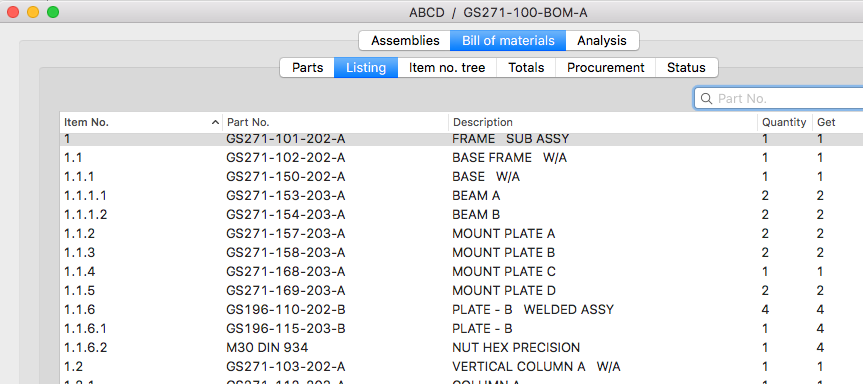

Listing

• listing of a file
• search for a part no.

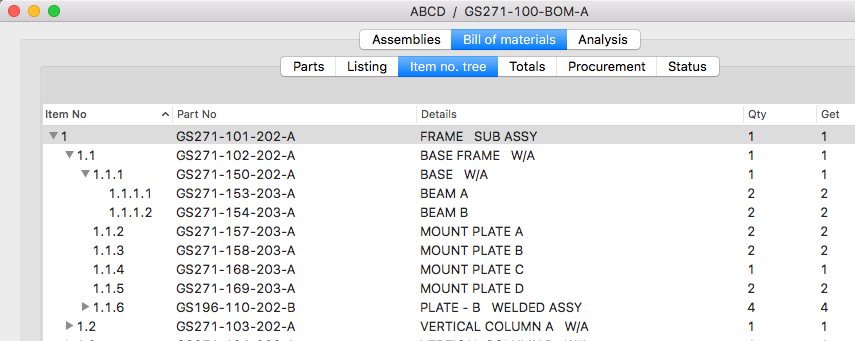

Item no. tree

• A tree of item no.'s

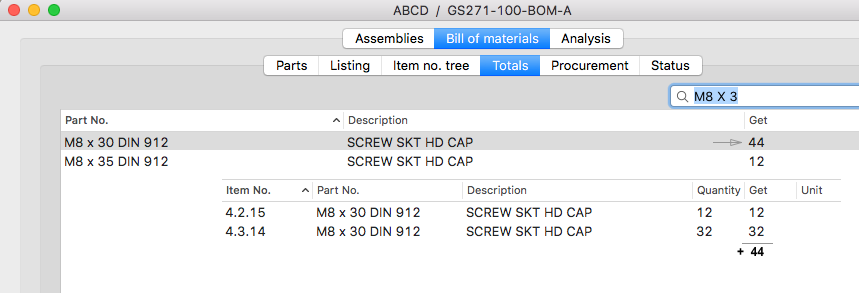

Totals

• Calculation of the totals

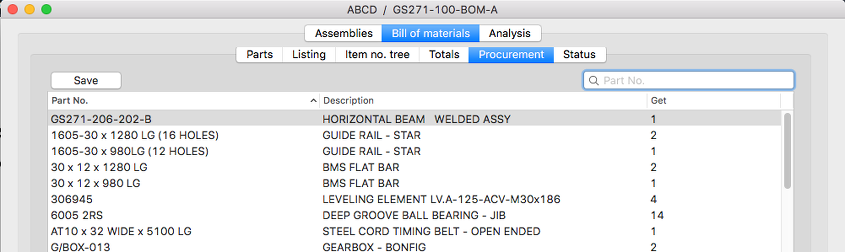

Procurement

• You can copy and paste the data
• Open the procurement with Numbers

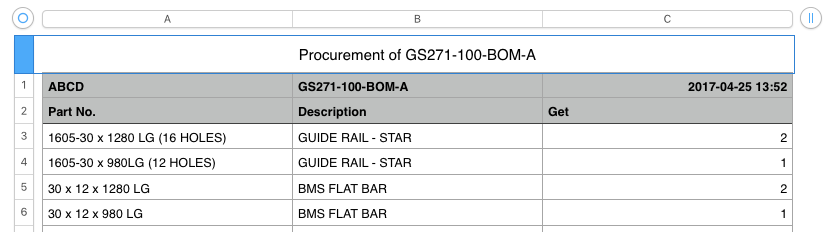

Numbers

• Display the procurement in Numbers

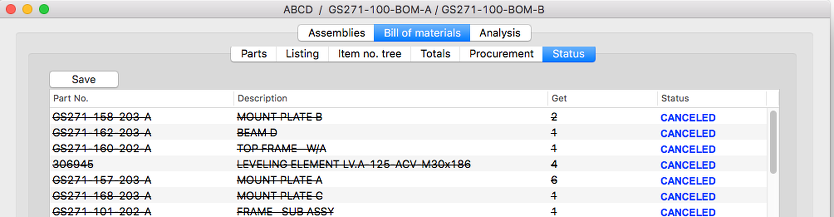

Status

• CANCELED if a Part No. is only in the previous revision.
• ADDED if a Part No. is only in the current revision.
• REVISED if the description changed.
• CHANGED if the number to get changed.

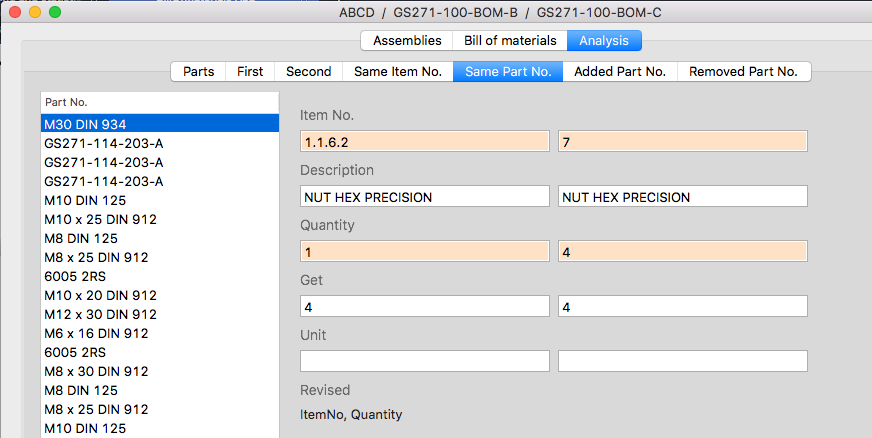

Same item & part no.

• The screen can be copied
• It can be pasted as a csv
• Each row will contain a complete data set of both parts

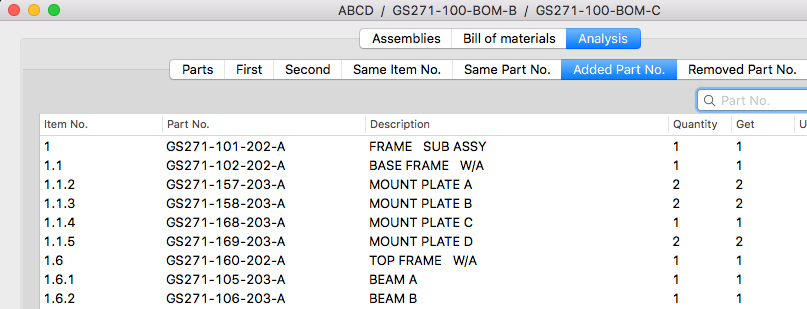

Added & Removed

• The screen can be copied
• It can be pasted as a csv

Email: gerritvn@gmail.com

Test Files

• CGC108-616-BOM-A (2013-05-23).csv
• GC108-450-BOM-A (2013-05-16).csv
• GC108-450-BOM-B (2013-06-26).csv
• GC108-450-BOM-A (2013-05-28).csv
• Zipped Assembly for importing
• Excel .xlsx procurement output example
• Program's Help
